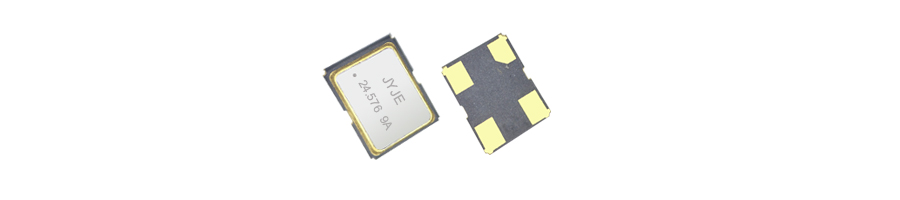

3TO4 OSC3225  Parameters

SYM.

3TO4 OSC3225  Electricial Spec

Min

Typ

Max

Units

1

标称频率Nominal Frequency

-

1.000～160.000

MHz

2

温度频差Frequency stability

-

±20 ±30

ppm

3

工作温度Operating Temperature

Topr

-40

25

85

℃

4

电源电压Supply Voltage

VDD

1.8V  2.8V 3.3V  5V

V

5

输入电流input Current

lcc

-

-

10

mAS

6

输出模式Output Type

-

 CMOS

-

7

输出负载Output Load

CL

  15

pF

8

输出高电平Output Voltage High

VOH

90%Vdd

-

-

V

9

输出低电平Output Voltage Low

VOL

-

-

10%Vdd

V

10

占空比Symmetry (Duty ratio)

TH/T

45

～

55

％

11

启动时间Start-up Time

Tosc

-

-

10

ms

12

上升延Rise Time

Tr

-

-

10

ns

13

下降延Fall Time

Tf

-

-

10

ns
